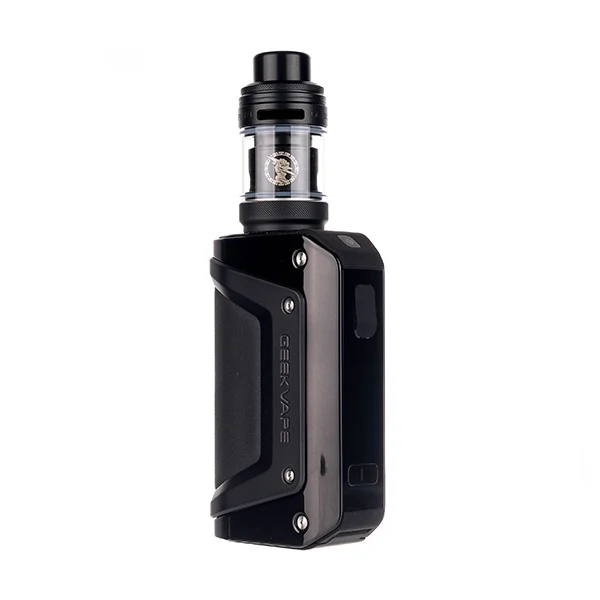

Geek Vape Aegis Legend 3 Vape Kit

The Geek Vape Aegis Legend 3 Vape Kit is a powerful 200W dual battery sub ohm vape kit designed for vapers who want high output, advanced controls and a durable device. It combines the Aegis Legend 3 Mod with the Geekvape Z Fli Tank, bringing together the AS Chip 4.0, Smart Lock technology, Memory Mode, multiple vaping modes and IP68 rated protection in one setup.

Powered by two external 18650 batteries, the Aegis Legend 3 delivers up to 200W of adjustable power and supports a wide range of vaping settings. The AS Chip 4.0 provides access to Power, Smart, Boosting, ECO, TCR and Memory modes, allowing the device to be adjusted to different vaping preferences. Batteries are sold separately.

The kit also includes the Geekvape Z Fli Tank, which features a flip top filling system, top adjustable airflow and a leak resistant design. In the UK TPD version, the tank has a 2ml e liquid capacity and uses Geekvape Z Series mesh coils for direct to lung vaping.

Geek Vape Aegis Legend 3 200W Mod

At the heart of this vape kit is the Aegis Legend 3 Mod. Its 5W to 200W output range gives you precise control over power, while the dual 18650 battery configuration provides the power source required for higher wattage vaping.

The device uses a 0.96 inch TFT colour screen that displays important settings clearly, including wattage and vaping information. The controls are designed to make changing settings straightforward, while the different operating modes allow you to customise the way the device performs.

AS Chip 4.0 For Adjustable 200W Power

The AS Chip 4.0 is one of the main features of the Aegis Legend 3. It controls the device’s output and provides several operating modes from a single chipset.

The available modes include:

• Power Mode
• Smart Mode
• Boosting Mode
• ECO Mode
• TCR Mode
• Memory Mode

With a power range of 5W to 200W, you can adjust the output according to the coil being used and your preferred vaping setup.

Smart Lock Technology

The Aegis Legend 3 introduces Smart Lock technology with an electronic palm recognition system built into the device. When Touch Lock is enabled, the device can recognise when it is being held and unlock accordingly.

There are three lock settings:

• Touch Lock: Uses palm recognition to unlock the device.
• Button Lock: Prevents accidental setting adjustments while allowing the device to be fired.
• Unlock Mode: Leaves the controls unlocked for users who prefer unrestricted operation.

The three lock options give you control over how the device is activated and how its buttons respond during everyday use.

Memory Mode With Five Saved Settings

The Memory Mode allows you to save up to five preferred power settings. This is useful if you regularly switch between different coils or vaping configurations and want to return to familiar settings without adjusting the wattage manually each time.

Geekvape specifies that the saved settings can be selected across the device’s 5W to 200W output range.

IP68 Tri Proof Protection

The Geek Vape Aegis Legend 3 features an IP68 rating, continuing the durable construction associated with the Aegis range.

The tri proof design provides protection against:

• Water
• Dust
• Shock

This makes the device suitable for users who want a more rugged vape mod for everyday use.

Geekvape Z Fli Tank With 2ml Capacity

The Geekvape Z Fli Tank is included with the Aegis Legend 3 Kit and is designed around a convenient top filling system.

For the UK TPD version, the tank has a 2ml e liquid capacity. Its flip top design provides quick access to the fill port, while the top airflow configuration is designed to help reduce leakage.

The tank uses Geekvape Z Series coils and is intended primarily for direct to lung vaping, making it suitable for high VG and sub ohm e liquids.

Z Series Mesh Coils Included

The Geek Vape Aegis Legend 3 Kit comes with two Z Series mesh coils, giving you different resistance options straight from the box.

The included coils are:

• Z0.15 XM Mesh Coil: Recommended at approximately 70W to 85W.
• Z0.4 XM Mesh Coil: Recommended at approximately 50W to 60W.

The 0.15Ω coil is preinstalled in the tank, while the 0.4Ω coil is supplied as the spare coil.

Always check the recommended wattage printed on the coil and prime a new coil with e liquid before use.

Adjustable Top Airflow Design

The Z Fli Tank features an adjustable top airflow system, allowing you to change the airflow restriction to suit your preferred draw.

The top airflow arrangement also forms part of the tank’s leak resistant design. Combined with the flip top filling mechanism, it provides a practical setup for regular sub ohm vaping.

Dual 18650 Battery Vape Mod

The Aegis Legend 3 Mod is powered by two external 18650 batteries. The batteries are not included with the kit and need to be purchased separately.

Using external batteries also means the batteries can be removed from the device for charging or replacement. Geekvape specifies a dual 18650 configuration with a 7.4V battery specification.

Use suitable, compatible 18650 batteries and follow the battery manufacturer’s safety instructions.

Type C Fast Charging

The Aegis Legend 3 includes a USB Type C charging port and supports fast charging at 5V/3A according to Geekvape’s specifications.

USB Type C provides a convenient charging connection when you need to recharge the device, although users should follow the manufacturer’s recommendations for battery charging and handling.

Multiple Vaping Modes

The Aegis Legend 3 provides several vaping modes so you can adjust the device to your preferred setup.

Power Mode

Power Mode allows you to manually select the wattage output between 5W and 200W.

Smart Mode

Smart Mode automatically helps set an appropriate power level for the installed coil, helping prevent unsuitable wattage settings.

Boosting Mode

Boosting Mode provides increased power output for users looking for a more powerful vaping setup.

ECO Mode

ECO Mode is designed to prioritise battery efficiency and help extend usage between charges.

TCR Mode

TCR Mode provides additional temperature coefficient adjustment for users who want greater control over temperature based vaping configurations.

Memory Mode

Memory Mode lets you save up to five preferred power settings for quick access.

Geek Vape Aegis Legend 3 Specifications

Feature	Details
Brand	Geek Vape
Product	Aegis Legend 3 Vape Kit
Maximum Output	200W
Output Range	5W to 200W
Chipset	AS Chip 4.0
Battery Type	Dual External 18650
Batteries Included	No
Display	0.96 Inch TFT Colour Screen
Tank	Geekvape Z Fli Tank
Tank Capacity	2ml TPD
Coil Type	Z Series Mesh Coils
Included Coils	Z0.15 XM and Z0.4 XM
Airflow	Adjustable Top Airflow
Filling System	Flip Top Fill
Charging	USB Type C
Charging Specification	5V/3A
Resistance Range	0.1Ω to 3Ω
Protection Rating	IP68
Vaping Modes	Power, Smart, Boosting, ECO, TCR and Memory
Lock Settings	Touch Lock, Button Lock and Unlock
Activation	Fire Button
Vaping Style	Direct To Lung

Specifications are based on Geekvape’s current product information and UK retailer listings.

Geek Vape Aegis Legend 3 Kit Dimensions

The Aegis Legend 3 measures approximately 140.5mm high by 55.36mm wide when paired with the Z Fli Tank. Geekvape lists the device as having a practical box mod form designed around its dual battery configuration.

What’s Included With The Aegis Legend 3 Kit?

Inside the Geek Vape Aegis Legend 3 Vape Kit, you get:

• 1 x Geekvape Aegis Legend 3 Mod
• 1 x Geekvape Z Fli Tank
• 1 x Z0.15 XM Mesh Coil
• 1 x Z0.4 XM Mesh Coil
• 1 x Spare Glass
• 1 x USB Type C Cable
• 1 x Spare Parts Pack
• 1 x User Manual

The exact packaging can vary by market, but Geekvape’s listed package contents include the above components for the 200W kit. 18650 batteries are not included.

How To Use The Geek Vape Aegis Legend 3?

Before using the kit, install two compatible 18650 batteries according to the polarity markings inside the battery compartment.

For a new coil, apply a small amount of e liquid to the exposed cotton and fill the tank. Allow the coil to saturate before vaping. This helps reduce the chance of a dry or burnt hit when a new coil is first used.

Once the coil is primed, select a suitable wattage within the coil’s recommended range. Start at the lower end of the recommended range and adjust gradually according to your preferred vape.

Which E Liquid Is Suitable For The Aegis Legend 3?

The Aegis Legend 3 with the Z Fli Tank is a sub ohm DTL setup. High VG e liquids are generally recommended for this type of tank and coil configuration. Vapestore specifically recommends high VG sub ohm e liquid for the kit.

The choice of e liquid strength and flavour is a personal preference, but the liquid should be suitable for sub ohm coils and the recommended wattage of the installed coil.

Who Is The Geek Vape Aegis Legend 3 For?

The Aegis Legend 3 is designed for experienced vapers looking for a high powered dual 18650 vape kit with adjustable wattage, sub ohm tank compatibility and a wide range of control options.

Its 200W output, Z Fli Tank, mesh coils, Smart Lock technology and IP68 construction make it a feature rich option for users who want more control than a basic pod or starter device.

Important Information

• This is a sub ohm vape kit intended for adult users.
• 18650 batteries are not included.
• Use two compatible external 18650 batteries.
• The UK TPD tank supplied with the kit has a 2ml capacity.
• Prime every new coil before use.
• Use e liquid suitable for sub ohm vaping.
• Do not use damaged batteries or damaged coils.
• Keep the device, batteries and e liquid away from children and pets.
• Always follow the manufacturer’s instructions and battery safety guidance.
• Nicotine containing e liquid is addictive and should only be used by adults of the applicable legal age.

Frequently Asked Questions

What Is The Maximum Wattage Of The Geek Vape Aegis Legend 3?

The standard Geek Vape Aegis Legend 3 has a maximum output of 200W, with an adjustable range from 5W to 200W. The separate Carrera Edition is specified differently, so this product description refers to the standard 200W version.

What Batteries Does The Aegis Legend 3 Use?

The Aegis Legend 3 uses two external 18650 batteries. The batteries are not included with the kit and must be purchased separately.

Does The Geek Vape Aegis Legend 3 Come With A Tank?

Yes. The kit includes the Geekvape Z Fli Tank, along with two Z Series mesh coils. The UK TPD version has a 2ml e liquid capacity.

Which Coils Come With The Aegis Legend 3 Kit?

The kit includes a Z0.15 XM mesh coil and a Z0.4 XM mesh coil. The 0.15Ω coil is supplied preinstalled and is recommended around 70W to 85W, while the 0.4Ω coil is rated around 50W to 60W.

Is The Geek Vape Aegis Legend 3 Waterproof?

The Aegis Legend 3 has an IP68 rating, with Geekvape describing the device as offering protection against water, dust and shocks as part of its tri proof construction.

What Is Smart Lock On The Aegis Legend 3?

Smart Lock uses an electronic palm recognition system to unlock the device when the Touch Lock setting is enabled. The device also offers Button Lock and Unlock modes, giving you three different control options.

Does The Aegis Legend 3 Have Memory Mode?

Yes. Memory Mode allows you to save up to five preferred power settings, making it easier to switch between saved configurations.

How Do You Charge The Aegis Legend 3?

The device features a USB Type C charging port and Geekvape specifies fast charging at 5V/3A. Always follow the manufacturer’s charging and battery safety instructions.

What Type Of Vaping Is The Aegis Legend 3 Designed For?

The Aegis Legend 3 paired with the Z Fli Tank is primarily designed for direct to lung sub ohm vaping. High VG e liquids are recommended for this setup.

Is The Aegis Legend 3 A Good Choice For Beginners?

The Aegis Legend 3 is an advanced 200W dual battery sub ohm kit with multiple modes, external batteries and replaceable coils. Users should be familiar with external battery and sub ohm vaping safety before using this type of device.
